High Thrust Clutch 301803, HiT301803, Arctic Cat 1000

Invention: a little change that makes big difference.

A good clutch should transmit engine torque to wheel torque efficiently.
However, power loss always exists, for ALL clutches.

So we invented something new, a patented HiT system that can borrow engine torque directly,
and then add this extra power to the clutch shoes.
In this way, you get at least 35% higher force to grab the bell,
the clutch pads won't over slip, and the clutch bell won't be over heated.
We shorten the pad slipping time to exactly what your clutch needs. Never over do nor waste effort.

The patented HiT design is a true design, not just adding a screw to change springs for fun.
Therefore HiT clutch performs smoothly at the time of engagement, as well as disengagement.
Get your vehicle "HiT clutch inside."


"HiT Clutch uses a set of interlocked moveable plates to combine the engine torque and centrifugal force to achieve the highest possible power transmission as a CVT clutch. Unlike those conventional clutches on the market, this innovative design realizes a simple yet effective concept, which generates more power from the engine to work on clutch weights and then the clutch bell, and to your vehicle, of course.

This HiT-only design is a one-of-a-kind patented structure that you can only see in Dr.Pulley HiT clutch."

Introduction

➔ High Thrust Clutch
➔ Disassemble HiT clutch 181401, Assembly and Installation
➔ HiT Clutch Mechanism

➔ How does a HiT Clutch work
➔ HiT Clutch Slippage
➔ How to tune HiT Clutch

➔ CVT Acceleration Curves – Basic Concept
➔ Tuning HiT Clutch – Road Test

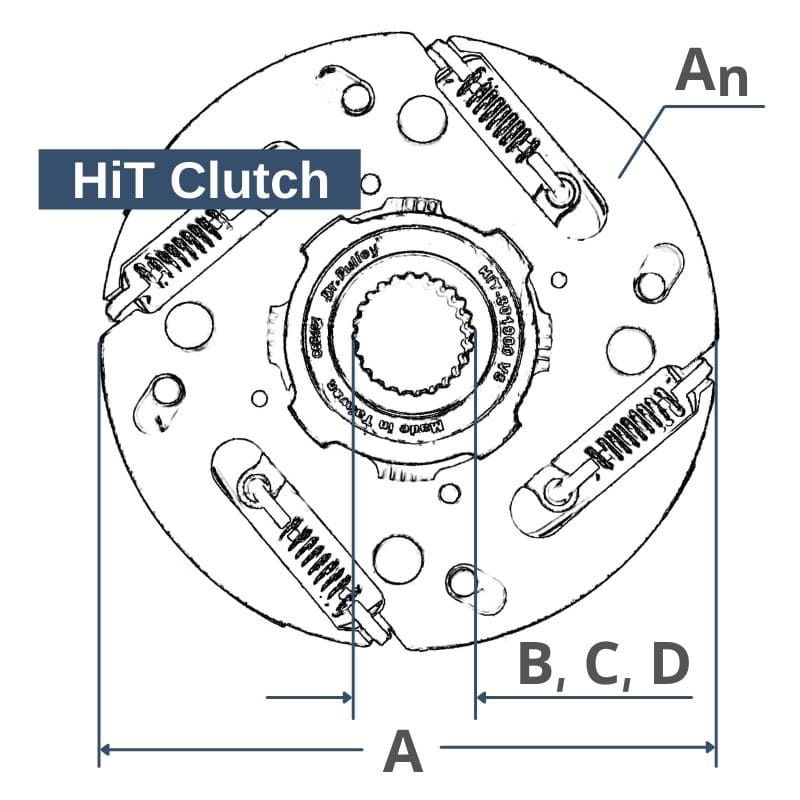

Dimension

High Thrust Clutch 301803, HiT301803

for 700/1000 c.c. vehicles with Bell ID 140 mm



High Thrust Clutch 301803, HiT301803

Package

Remark:

Even with the same model name, vehicles may still be different in different areas or countries.
Models listed are for reference. Please check with your technician before purchasing.

Social Media

• Facebook
• Youtube
• Official LINE

Applicable Models (For Reference Only)

Year→ = After this Year. For example: 2022→
→Year = Before this Year. For example: →2022
Year→Year = From Year to Year. For example: 1980→2022
Your scooter model year is the year it was manufactured.
(Note: it is not when you bought it, but when it was made.)

Relevant question:

• Where are the applicable models for the parts?
• What if I do not find my vehicle model in the List?

Make	Model	Cc.	Year
Arctic Cat	ARCTIC CAT 1000	1000
Make	Model	Cc.	Year



Applicable Models (For Reference Only)

Year→ = After this Year. For example: 2022→
→Year = Before this Year. For example: →2022
Year→Year = From Year to Year. For example: 1980→2022
Your scooter model year is the year it was manufactured.
(Note: it is not when you bought it, but when it was made.)

Relevant question:

• Where are the applicable models for the parts?
• What if I do not find my vehicle model in the List?

Make	Model	Cc.	Year
Arctic Cat	ARCTIC CAT 1000	1000
Make	Model	Cc.	Year

Dr.Pulley tuning parts are for racing or performance purpose only.

Unawareness of use may cause serious danger.
Please ask a professional technician to install these products.

In no event shall our company be liable for any direct, indirect, punitive, incidental, special consequential damages, to property or life, whatsoever arising out of or connected with the use or misuse of our products.
