Foreword

In order to make it easy for understanding clearly, some parts of the displayed pictures are exaggerated and enlarged, rather than the actual appearance, so it’s for reference only.

Basic introduction

The relevant parts include Ramp Plate, Weight Roller and Variator. From the cross-sectional perspective, the Ramp Plate is fixed, and the Weight Roller affected by its centrifugal force moving outward and reaches the top position.
In the process, a thrust is generated to make the Variator half (the movable variator half) move forward (outward), which is a normal state so far.

What is the effect of the burrs on the Ramp Plate - basic introduction

What effect is the burrs on the Ramp Plate?

Formula

This is the burr on the ramp plate (exaggerated), which is the main point of this explanation. We mentioned P=F/A last time. The area of ​​the burr that is in contact with the weight roller is very small, and the pressure will be very large, resulting in increased wear and tear.

What is the effect of the burrs on the Ramp Plate - formula

Sliding Roller Weight

What is the effect of the burrs on the Ramp Plate - After the Sliding Roller is worn

  After the Sliding Roller is worn, although the front end of its upper position will be abraded away, but the overall height will not be affected.

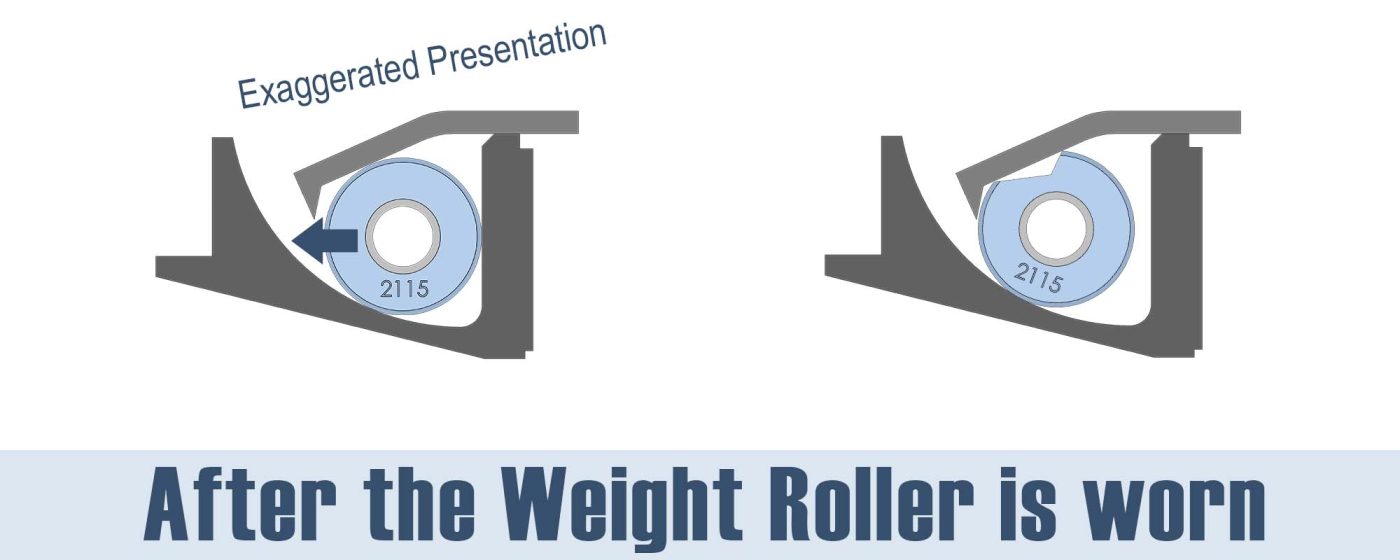

Round Roller Weight

What is the effect of the burrs on the Ramp Plate - After the Roller Weight is worn

  The Round Weight Roller will lose a part after wear, the overall height will become smaller obviously, and the worn process is gradually formed.

If you are not sure whether the edge of the Ramp Plate will abrade the weight roller,
it is recommended to remove it.

What do the edge burrs of the Ramp Plate look like?

  There are our kinds of ramp plates, showing what do the edge burrs of ramp plate look like? Usually, they’re not obvious, so there’s a great way, to take off your glove and use your thumb to gently swipe the edge of the ramp plate, and you’ll know the answer, feel the sharpness.

What is the effect of the burrs on the Ramp Plate - What do the edge burrs of the Ramp Plate look like

Tool Preparation

File

Due to easily obtain, cheap cost, small size and never trimming too much, the file is the best choice.

Rotary tool Kit

It’s also called grinding machine, installed the grinding head on the machine which is driven by air pneumatic or electric power, very convenient and labor-saving.

What is the effect of the burrs on the Ramp Plate - prepare tool

Trimming Ramp Plate

Trimming demonstration of several NG ramp plates

File

Grinding machine

How is acceptable?

The purpose is to remove the burrs, no need to have large chamfer, no any benefit. Chamfer of 0.2~1.0 mm is enough, If the visual inspection is not easy, using your thumb to slide the edge to check its touch feeling, smooth or not.
